6004 Control Panel

Keywords: Addressable Control Panel 1-Loop, Expandable to 2 Loops or 2- Loops

The 6004 analogue addressable control and indicating equipment forms the central part of a fire detection and alarm system. The fully networkable 2-wire 6004 is compatible with Numens addressable devices and can also be connected to non-addressable devices when used with addressable input modules.
Default configuration programming facilitates out-of-box installation and rapid commissioning. A powerful and versatile
cause-and-effect PC-based programming tool enables rapid customization with software for sites that require special
operating features.
The 6004 comes standard with features that allows flexibility and expandability.
The 6004 control panel provides fire detection and alarm system designers with a premium product for life safety and property protection applications.



· Single loop or 2-loop options available

· Single loop, expandable to 2-loops available
· Networkable, up to 4 control panels
· Supports up to 125 addressable devices per loop
· Automatic device detection on start-up
· Automatic device type-code verification
· 2 independently programmable non-addressable sounder output circuits
· 2 programmable relay outputs
· Fault relay output
· Remote disable and evacuation inputs
· Backlit LCD display providing 4 rows of 40 characters
· 16 zone fire alarm LED indicators
· 3000 event history log
· Attractive designer enclosure available in white
· Surface mounting
· Rugged metal enclosure
· Easy installation

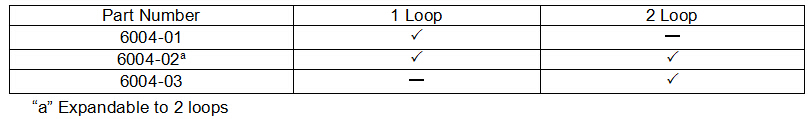

Ordering Information
