4002 Control Panel

Keywords: Non-Addressable Control Panel, 16 Detection Zones, Metal Enclosure

The 4002 non-addressable control and indicating equipment forms the central part of a fire detection and alarm system. The 2-wire 4002 is compatible with Numens non-addressable devices.
The 4002 comes standard with features that allows flexibility and expandability. Default configuration programming facilitates out-of-box installation and rapid commissioning.
The 4002 control panel provides fire detection and alarm system designers with an economical product for life safety and property protection applications.



· 16 detection zones
· Supports up to 32 non-addressable devices per alarm zone circuit
· Configurable non-latching alarm zones
· Configurable alarm dependency (zone coincidence detection)
· Configurable timer to delay output activation (up to 10 min)
· Capacitor end-of-line device.
· 3 Access Levels
· Single-person test mode
· Day/night mode configurable
· Manual activation of alarm devices
· Supervised auxiliary DC 24 V output
· 2 programmable non-addressable alarm output circuits
· 2 unmonitored relay contacts for Fire Alarm Condition outputs
· 1 unmonitored relay contact for Fault Condition output
· 3 voltage-free inputs for remote reset, evacuation start/stop, and Day/Night mode
· Clear alarm zone LED indicators, with a single indicator for Fault, Disable and Test Condition indication
· Recessed mounting enclosure
· Supports up to 7 Repeater Panels
· Easy installation

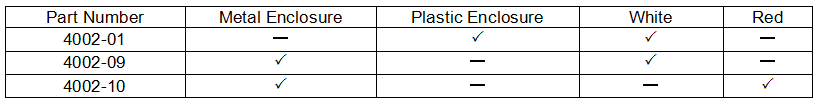

Ordering Information
