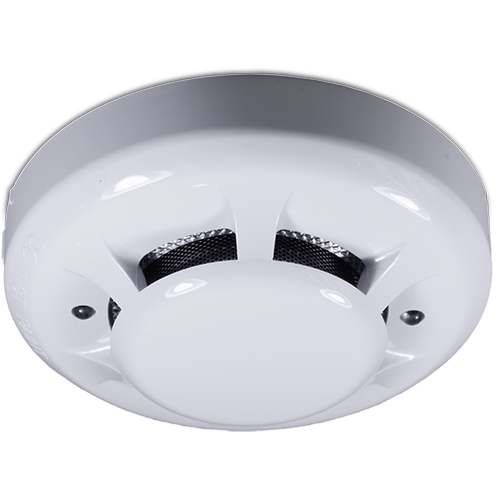

SNC-300 Smoke Detector Keywords: Non-Addressable Smoke Detector, EN54-7 and UL268 Approved , 4-Wire, Relay Output, Auto-Reset, 12/24/48V: SNC-300 non-addressable photoelectric smoke detectors are state-of-the-art detectors suitable for connection to 2-wire or 4-wire non-addressable fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept non-addressable type detectors.
Advanced electronics in conjunction with a photoelectric smoke sensing chamber provide early detection of fire and high immunity against unwanted alarms.
The SNC-300 non-addressable detector range provides fire detection and alarm system designers with a Standards-
compliant economical smoke detector for life safety and property protection applications.

Download

Features

· Advanced algorithms provide analogue detection discrimination

· Surface-mount device (SMD) circuit board design
· High immunity against unwanted alarms
· Stable smoke sensing chamber. No adjustment or replacement required
· 4-wire models for DC 12 V, 24 V and 48 V operation
· 4-wire models available with a N/O alarm relay output
· 4-wire model compatible with relay base
· 4-wire models available with auto-reset function
· Connects to zone monitor for use with addressable control and indicating equipment
· Sleek low-profile housing design
· Dual LEDs for 360° visibility
· Low maintenance

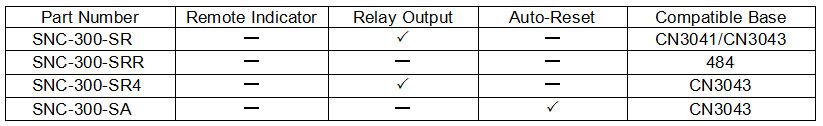

Ordering Information
