Keywords: Residential Smoke/Heat Alarm, 3 V Lithium Battery, Wireless Interconnect, Sounder Output
205 DC smoke/heat alarms provide battery powered smoke and heat detection, together with alarm functions within a single unit.
Advanced electronics in conjunction with a photoelectric smoke sensing chamber and sensitive heat detection element provide early detection of fire and high immunity against unwanted alarms.
205 DC smoke/heat alarms are powered by a long-life lithium-ion battery and do not require a mains supply. Models with either user-replaceable and non-replaceable batteries are available.
Interconnectable 205 DC smoke/heat alarms use a wireless transmission path. Configuration into a closed group ensures that other units within radio signal range are not affected by a test or fire alarm occurring within the configured group.
Features
· Photoelectric smoke sensing chamber technology
· Fixed temperature and rate-of-rise operation using electronic thermistors with microprocessor control
· Loud 85 dB sounder to alert occupants
· Integrated indicator provides visual indication of an alarm condition
· Test and Hush features in a single button
· Test and Hush visual indicator
· Test button verifies battery and alarm operation
· Hush function temporarily silences unwanted alarms
· Smoke chamber and heat sensor fault audible and visual indication
· Hush function temporarily silences smoke chamber and heat sensor fault indication
· Low battery audible and visual warning indication
· Hush function temporarily silences low battery audible indication
· Interconnectable smoke/heat alarms configurable into a closed group
· No limit for interconnectable units using the wireless transmission path
· Up to 10 years operation under normal conditions
· User-replaceable battery and non-replaceable battery models available

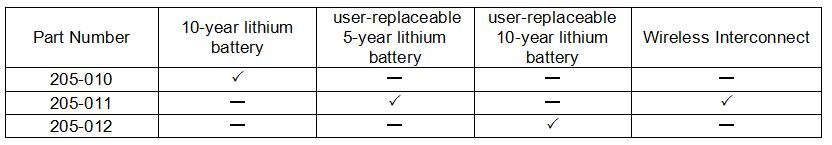

Ordering Information
